SOUND CONTROL ASSEMBLY : PGD-15-435-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 54

    NOAL 18-0844

  • Fire

    1 hr.

    V464, Config A

  • Dimensions

    Thickness: 5-3/8"

    Approx. Weight: 6 lb/ft²

  • Bearing

    Non-Load Bearing

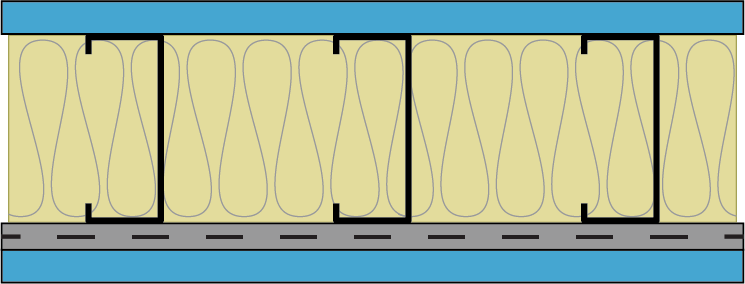

ASSEMBLY DETAILS

  • 1” Type S screws (for fire, minimum 1-1/4” Type S screws) spaced 8” o.c. at edges and 12” o.c. in the field.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 3-5/8” 15 mil steel studs, 16” o.c.
  • 33-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Resilient channel applied at right-angle, 24” o.c.
  • 1/2” Type S screws attaching resilient channel to stud at each intersection.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 1” Type S drywall screws at 12” o.c.
