SOUND CONTROL ASSEMBLY : PGD-15-423-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 58

    NOAL 17-0435

  • Fire

    1 hr.

    V464, Config A

    WP-1002

  • Dimensions

    Thickness: 5-1/2"

    Approx. Weight: 7.5 lb/ft²

  • Bearing

    Non-Load Bearing

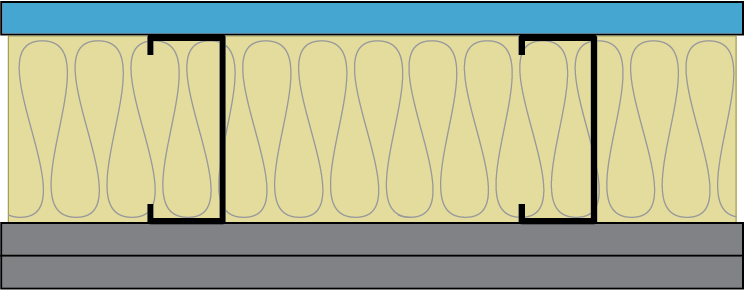

ASSEMBLY DETAILS

  • 1” Type S screws (for fire, minimum 1-1/4” Type S screws) spaced 8” o.c. at edges and 12” o.c. in the field.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 3-5/8” 15 mil steel studs, 24” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1” Type S screws (for fire, minimum 1-1/4” Type S screws) spaced 16” o.c.
  • Face layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1-5/8” Type S screws (for fire, minimum 1-7/8” Type S screws) spaced 8” o.c. at edges and 12” o.c. in the field.
