SOUND CONTROL ASSEMBLY : PGD-WS-647-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 47
NOAL 17-0936
-
Fire
1 hr.
U340
-
Dimensions
Thickness: 6-3/4"
Approx. Weight: 6.7 lb/ft²
-
Bearing
Load Bearing

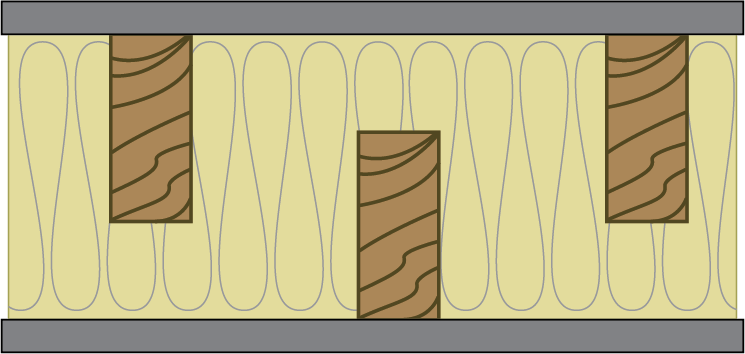

ASSEMBLY DETAILS
- 1-7/8” Type W bugle head drywall screws 7” o.c.
- One layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 2 x 4 wood studs on 2×6 plates spaced 16” o.c. staggered 8” o.c.
- 6”, R-19 glass fiber insulation friction fit into stud cavity.
- One layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-7/8” Type W bugle head drywall screws 7” o.c.
