SOUND CONTROL ASSEMBLY : PGD-43-604-24
ASSEMBLY COMPONENTS
-
Acoustical
STC 49
NOAL 19-0733
-
Fire
2 hrs.
U425
-
Dimensions
Thickness: 6-1/8"
Approx. Weight: 9.7 lb/ft²
-
Bearing
Limited Load Bearing

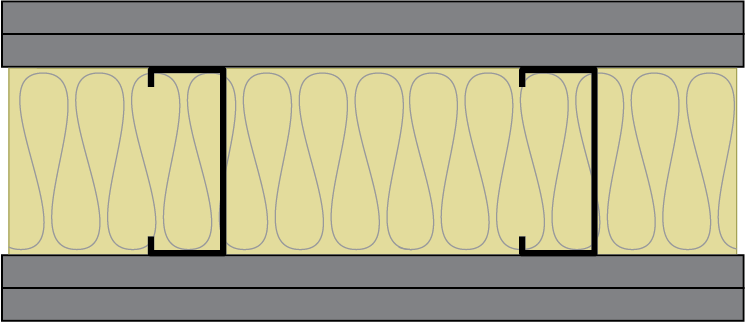

ASSEMBLY DETAILS
- 1-5/8” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, screws spaced 12” o.c.).
- Face layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S-12 drywall screws spaced 12” o.c.).
- Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 3-5/8” 43 mil steel studs, 24” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S drywall screws spaced 12” o.c.).
- Face layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-5/8” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, screws spaced 12” o.c.).
