SOUND CONTROL ASSEMBLY : PGD-18-664-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 46

    NOAL 20-1206

  • Fire

    1 hr.

    U465

  • Dimensions

    Thickness: 4-7/8"

    Approx. Weight: 4.8 lb/ft²

  • Bearing

    Non-Load Bearing

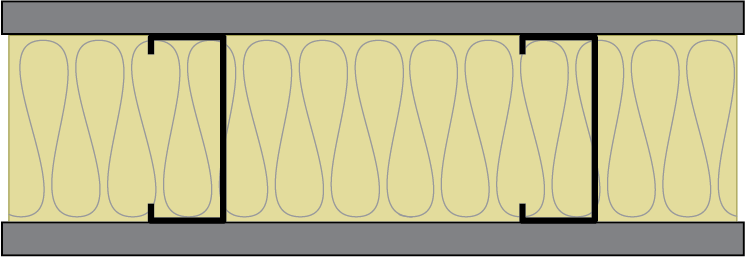

ASSEMBLY DETAILS

  • 1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S screws)
  • One layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 3-5/8” 18 mil steel studs, 24” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S screws)
