SOUND CONTROL ASSEMBLY : PGD-18-596-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 45
NOAL 18-0528
-
Fire
2 hrs.
U411
-
Dimensions
Thickness: 6-1/8"
Approx. Weight: 8.9 lb/ft²
-
Bearing
Non-Load Bearing

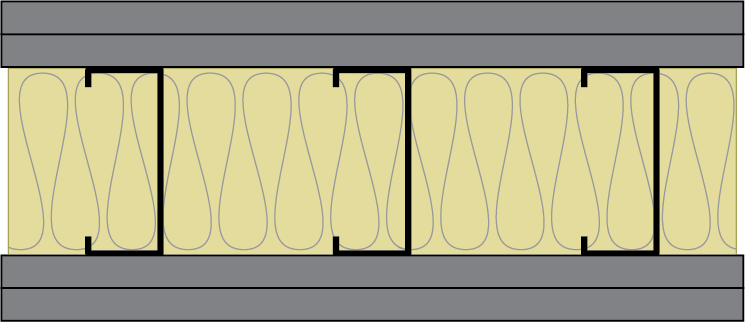

ASSEMBLY DETAILS
- 1-5/8” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, 1-5/8” type S screws spaced 16” o.c. in the field and along the vertical edges and 12” o.c. along top and bottom runners.).
- Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S screws) spaced 16” o.c.)
- Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 3-5/8” 18 mil steel studs, 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S screws spaced 16” o.c.)
- Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1-5/8” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, 1-5/8” type S screws spaced 16” o.c. in the field and along the vertical edges and 12” o.c. along top and bottom runners.).
