SOUND CONTROL ASSEMBLY : PGD-15-427-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 58
NOAL 18-0846
-
Fire
1 hr.
V464, Config A
-
Dimensions
Thickness: 6"
Approx. Weight: 7.6 lb/ft²
-
Bearing
Non-Load Bearing

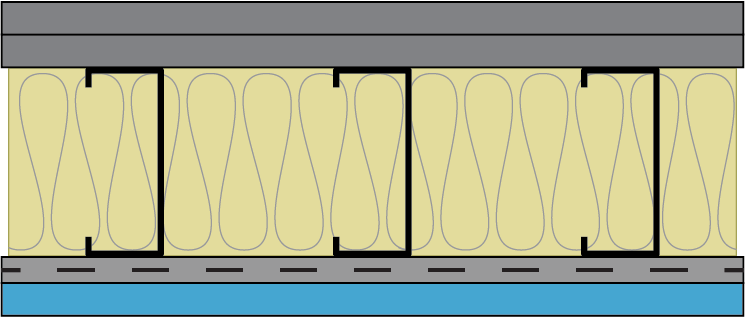

ASSEMBLY DETAILS
- 1-5/8” Type S screws (for fire, minimum 1-7/8” Type S screws) spaced 8” o.c. at edges and 12” o.c. in the field.
- Face layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1” Type S screws (for fire, minimum 1-1/4” Type S screws) spaced 16” o.c.
- Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 3-5/8” 15 mil steel studs, 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- Resilient channel applied at right-angle, 24” o.c.
- 1/2” #8 Type S pan head screw attaching Resilient Channel to stud flange at alternate intersections.
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 1” Type S drywall screws at 12” o.c.
